Original Prusa Magnetic heatbed MK52 24V (assembly)

This product is the replacement Magnetic heatbed MK52 24V. It is ONLY compatible with the MK3/S/+. It is NOT compatible with the MK2.5/S.

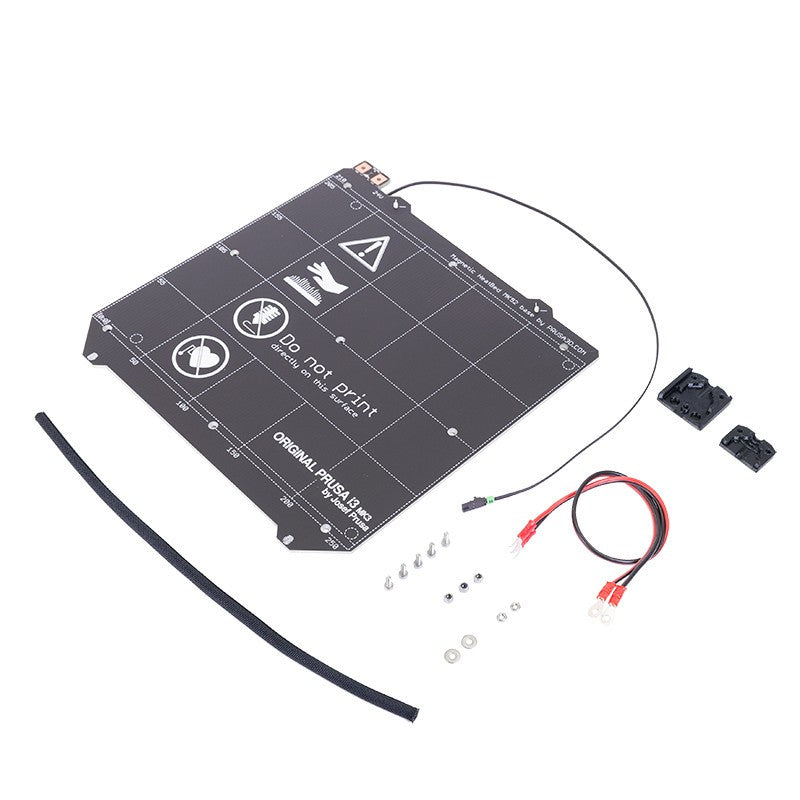

This product includes:

• Magnetic heatbed MK52 24V (1 pcs)

• Heatbed-Einsy power cable (screw-attached) (1 pcs)

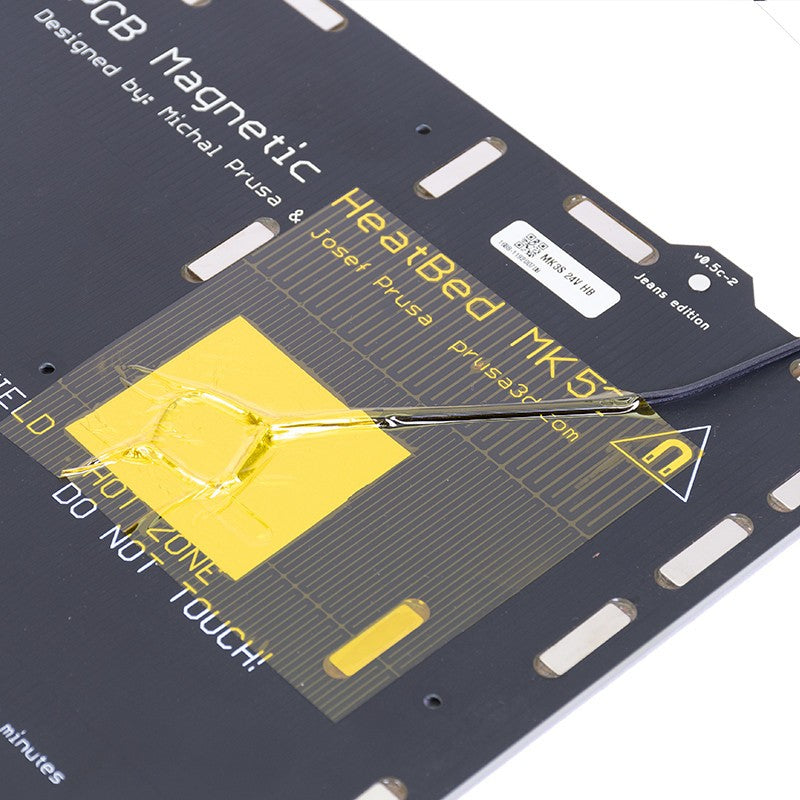

• Heatbed thermistor E3D (already mounted and fixed in place by the aluminum and kapton tapes) (1 pcs)

• Textile sleeve (Length: 300 mm, Width: 5 mm) (1 pcs)

• Heatbed cable cover (1 pcs)

• Heatbed cable cover clip (1 pcs)
• Nuts: M3nN (3 pcs), M3n (2 pcs)
• Screws: M3x10 (5 pcs)
• Washers: M3/3,2/9/0,8 (2 pcs)

Specifications:

• Height: 264.4 mm
• Width: 254 mm
• Thickness: ~3.175 mm
• Maximum working temperature: 120°C
• Maximum recommended temperature: 110°C
• Voltage: 24V
• Current: 6.25A
• Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090

To replace the part/s, please consult our Assembly Manuals. Make sure to follow the manual for your printer model.
